Near net shapes save time and money

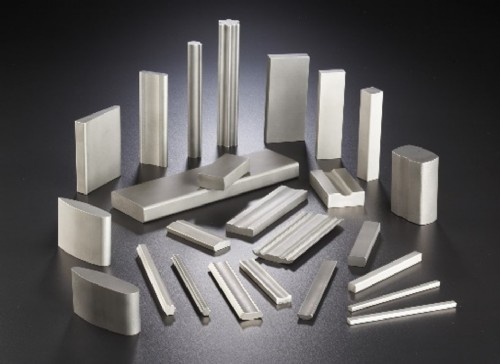

The value of getting starting material that's close to finish part sizes is enormous. Perryman's premium net shape capability can help minimize yield loss and time - leading to reduced overall cost. We produce rectangles, squares, flats, and custom shapes.
- Rectangles: Minimum 0.250" (6.35 mm) up to 1.75" (44.45 mm) by 2.75" (69.85 mm) -- a 4:1 Ratio
- Squares: 0.250" (6.35 mm) up to 2.00" (50.80 mm)
- Flats: 0.250" (6.35 mm) by 0.375" (9.52 mm) up to 1.75" (44.45 mm) by 2.75" (69.85 mm)
- Custom profiles available upon request
- Titanium 6Al/4V
- Titanium 6Al/4V ELI
- Titanium 6Al/7Nb
- Titanium CP grades 1,2,3,4
- Other grades available upon request
- ASTM B348, ASTM F136, ASTM F1472, AMS 4928, AMS 4930, MilT 9046, MilT 9047
- Ultrasonic testing - 2631 & 2632
Rectangular and Square Bar
- Large shape greater than 1.00" (25.4 mm) wide:
- Standard bar: +/- 0.020" (0.50 mm)
- Precision bar: +/- 0.015" (0.375 mm)
- Small shape less than or equal to 1.00" (25.4 mm) wide:
- Standard bar: +/- 0.010" (0.25 mm)
- Precision bar: +/- 0.005" (0.127 mm)
- Boxed suitably for domestic and international shipments
- 10ft. to 12ft. (3.0 m to 3.6 m)
- Other custom lengths available upon request
